Click on any image to enlarge.
If you know the SmartJob™ where you would like to revise the Dependencies of a Task or the SmartJob™, you can search using either Global or Gantt Search. (see Global Search, Gantt Search articles)

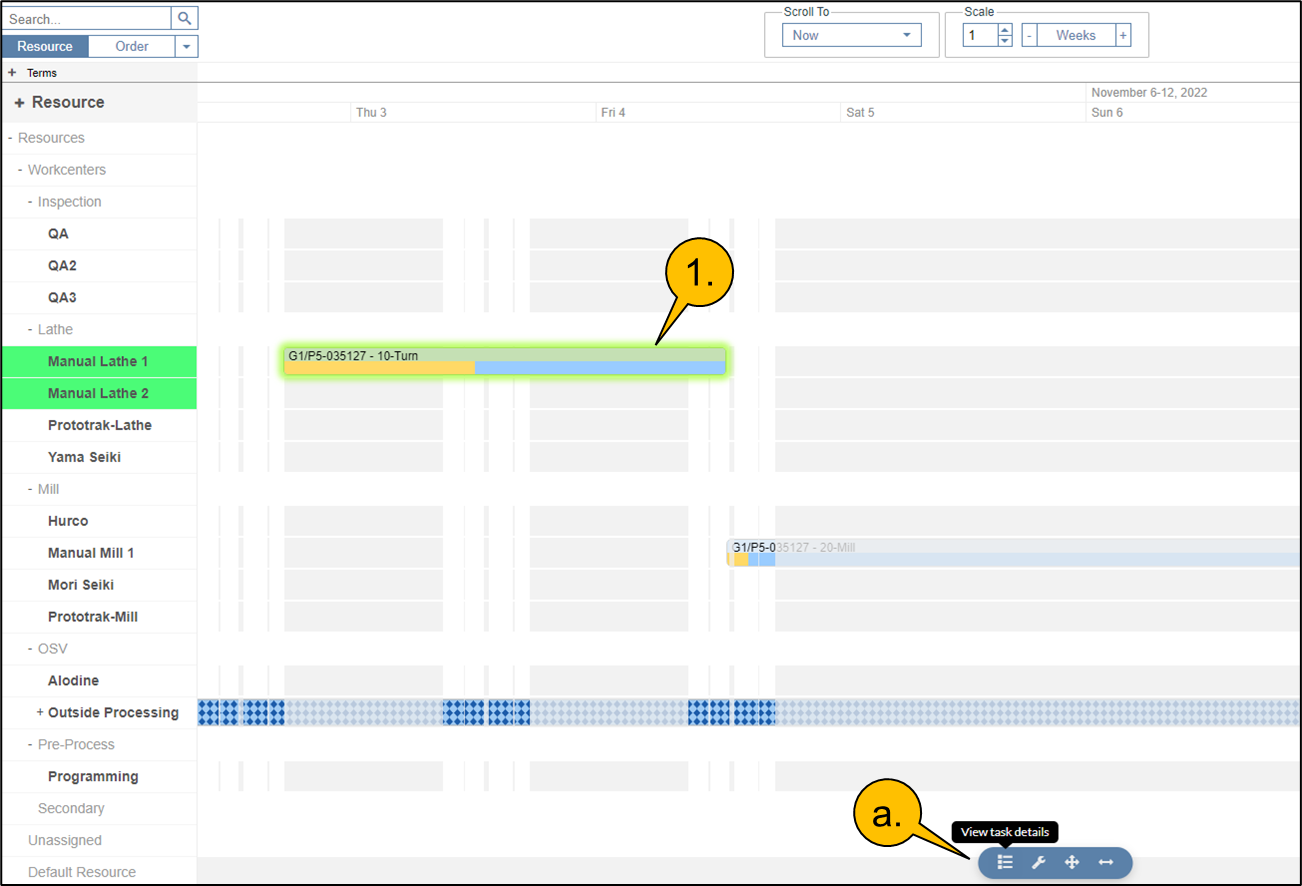

1. From the Gantt/Schedule Board click on any Task of the SmartJob™
a. Click on the icon to bring up the details dialog.

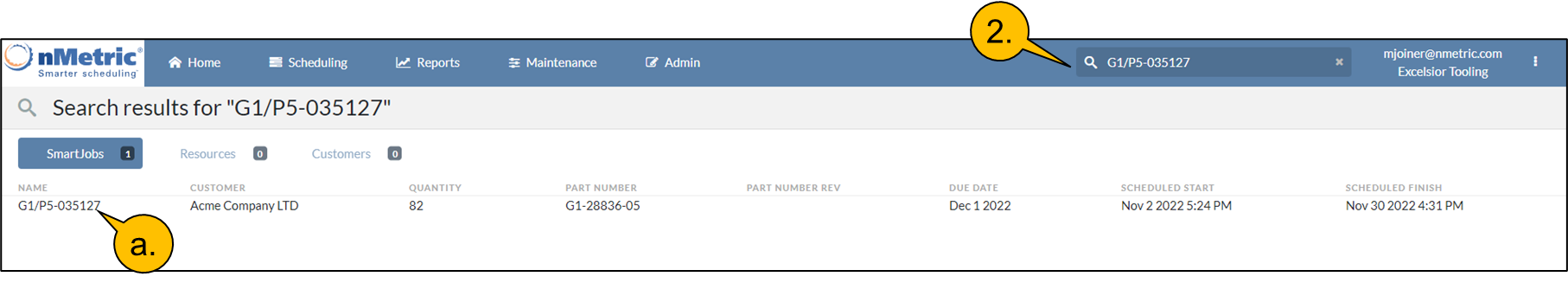

2. From Global Search
a. Click on the appropriate SmartJob™ to bring up the details dialog.

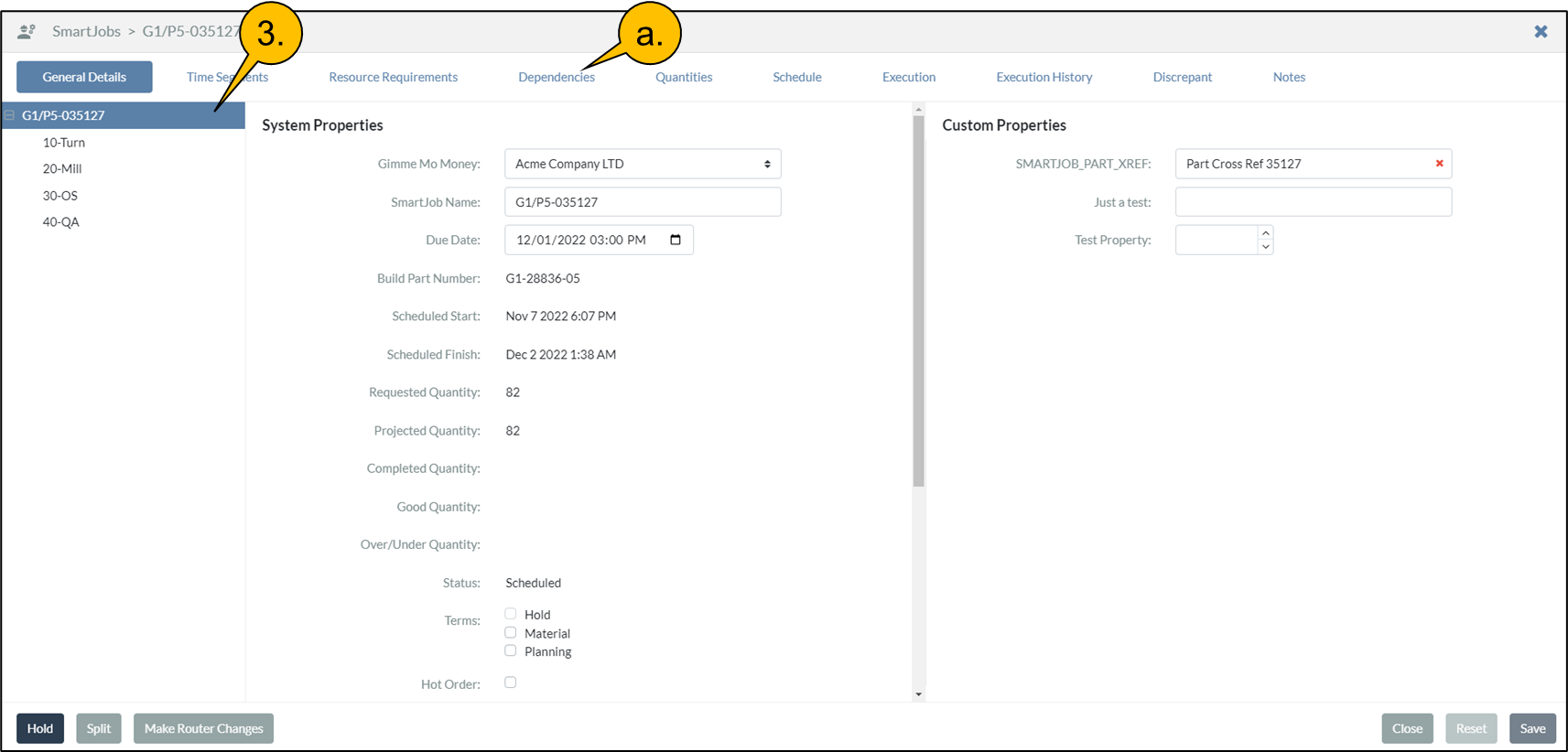

3. Click on the SmartJob™ level in the left panel. The General details tab for that SmartJob™ is now displayed.
a. Click on the “Dependencies” tab

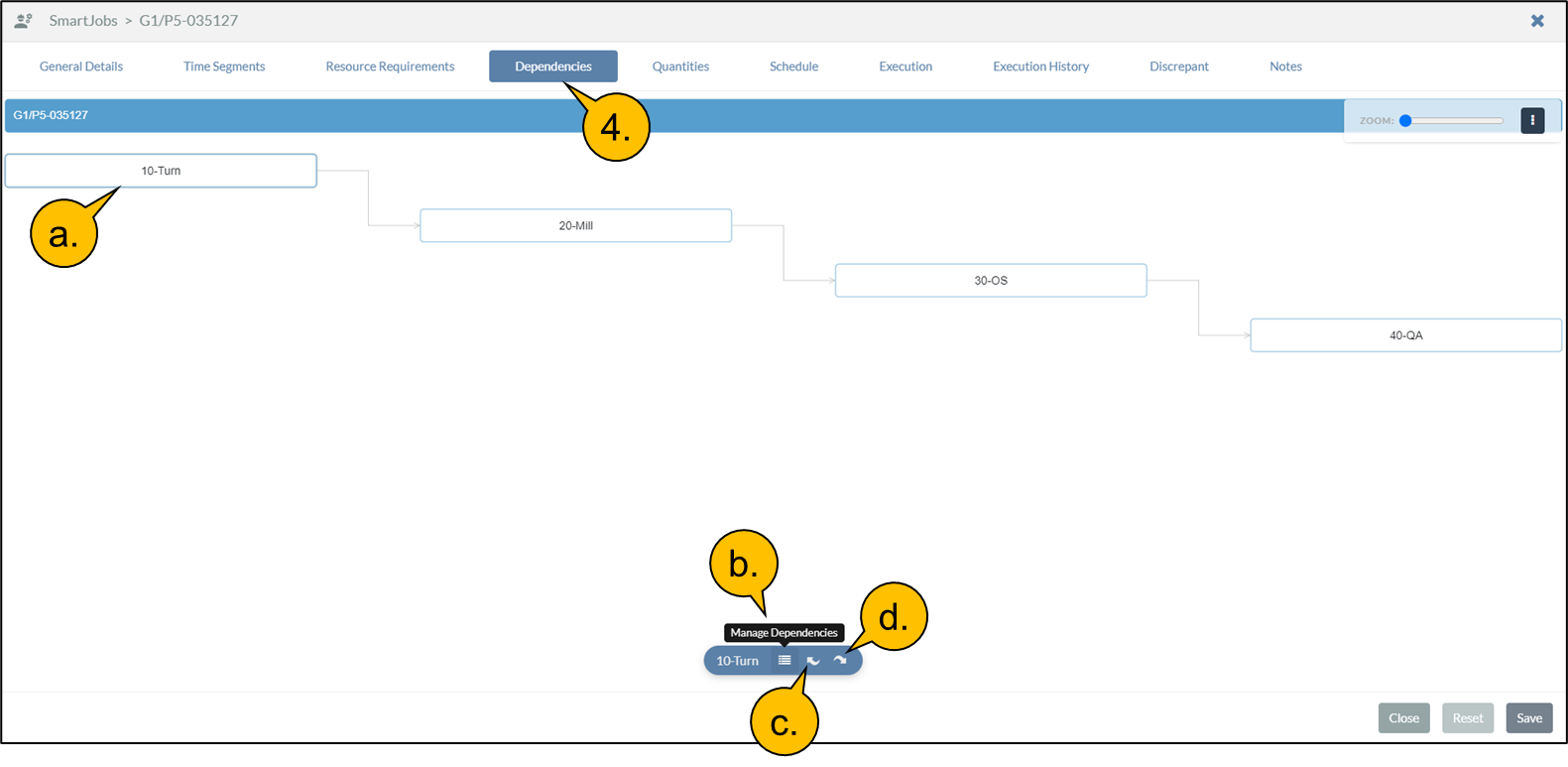

4. The Dependency screen will visually display all the dependencies for the SmartJob.
a. Click on the task you would like to revise.
b. You can then click on the icon for opening the dependency details.
c. Or you could click on the add predecessor icon, which will present a list of tasks that will select from.
d. Or you could click on the add successor icon, which will present a list of tasks that will select from.

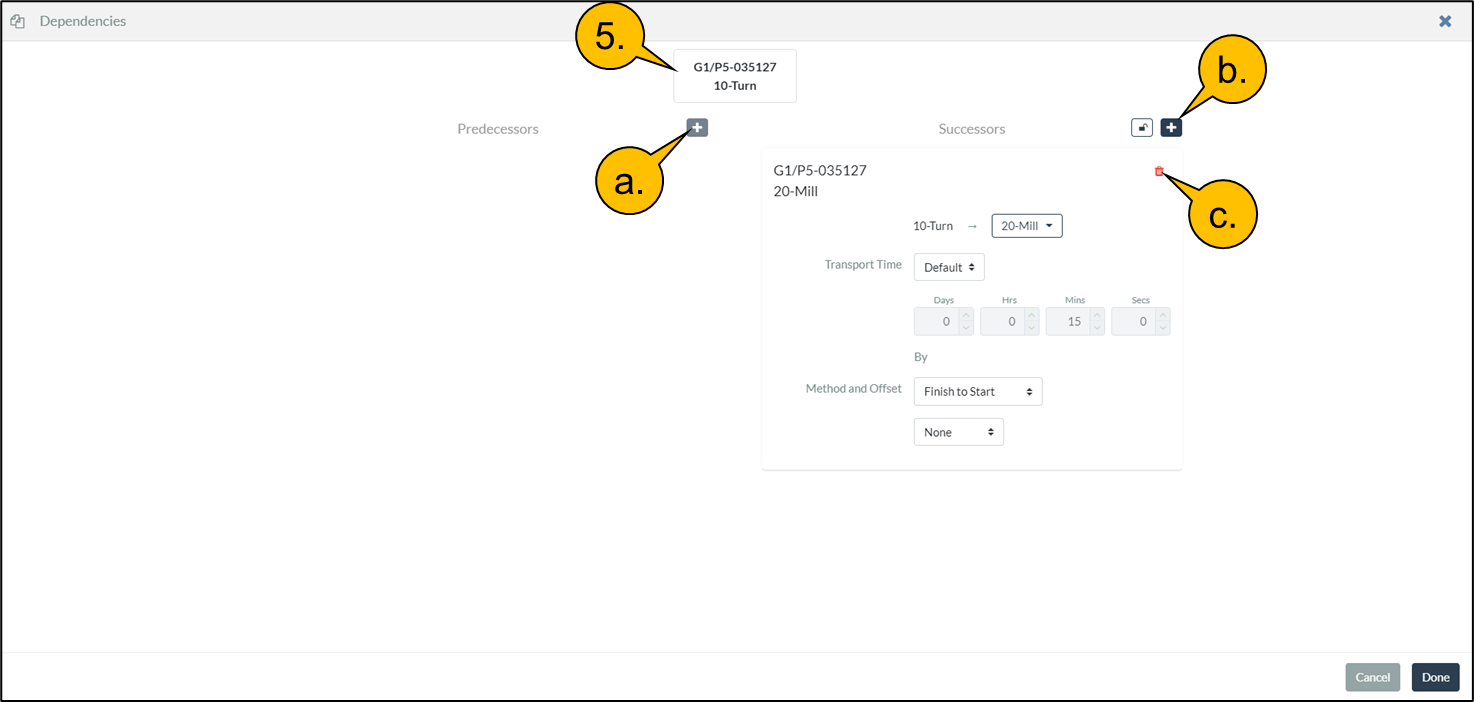

5. Clicking on the “Manage Dependencies” icon will bring up a new screen that shows all the details.
a. You can add a predecessor task by clicking on the “plus sign”
b. You can add a Successor task by clicking on the other “plus sign”
c. Or you can delete a dependency by clicking on the “delete” icon.
Whichever option you choose you will then need to “Save” your changes.
